solderic.com I2S (Inter-IC Sound) is specifically designed for transmitting audio data between digital audio devices, offering synchronized, high-quality sound communication, while SPI (Serial Peripheral Interface) is a versatile, general-purpose protocol used for data transfer between microcontrollers and peripherals, supporting various data types and speeds. To understand which protocol suits your project needs and how their differences impact performance, read the rest of the article.
Comparison Table
| Feature | I2S (Inter-IC Sound) | SPI (Serial Peripheral Interface) |
|---|---|---|
| Purpose | Digital audio data transmission | General-purpose synchronous serial communication |
| Data Type | Audio samples (stereo, PCM) | Any digital data |
| Data Lines | 3 main lines: Serial Data (SD), Word Select (WS), Serial Clock (SCK) | 4 lines: MOSI, MISO, SCLK, SS (Chip Select) |
| Clocking | Separated bit clock and word select clock | Single clock line synchronizing data transfer |
| Full Duplex | Yes, supports simultaneous send/receive audio | Yes, supports full-duplex data exchange |
| Data Frame | Fixed size frames aligned with audio word boundaries | Flexible frame size, protocol defined by user |
| Speed | Typically lower, optimized for audio sampling rates | High speed, up to several MHz |
| Use Cases | Audio codecs, digital microphones, sound processors | Memory devices, sensors, displays, general data transfer |
Introduction to I2S and SPI
I2S (Inter-IC Sound) is a serial bus interface specifically designed for connecting digital audio devices with high-fidelity data transmission, supporting audio formats such as stereo and multichannel PCM. SPI (Serial Peripheral Interface) is a synchronous serial communication protocol used for short-distance data exchange between microcontrollers and peripherals, offering full-duplex communication with configurable clock polarity and phase. Both interfaces use separate data and clock lines but serve distinct purposes: I2S for audio streaming and SPI for general-purpose data transfer in embedded systems.
Overview of I2S Protocol
I2S (Inter-IC Sound) Protocol is a specialized serial communication interface designed primarily for digital audio data transfer between audio devices such as codecs, DACs, and microcontrollers. It uses separate lines for word select, bit clock, and serial data to synchronize and transmit audio streams efficiently, maintaining high fidelity and low latency. Your choice of I2S ensures synchronized stereo audio transmission optimized for real-time sound processing applications.
Overview of SPI Protocol
SPI (Serial Peripheral Interface) is a synchronous serial communication protocol primarily used for short-distance communication, enabling full-duplex data transfer between a master device and one or more slaves. It operates with a clock signal (SCLK), master output, slave input (MOSI), master input, slave output (MISO), and a chip select (CS) line to manage device communication. Your choice of SPI is ideal for high-speed data exchange in embedded systems where multiple peripherals require efficient, low-latency communication.
Key Differences Between I2S and SPI
I2S (Inter-IC Sound) is a serial bus interface specifically designed for transmitting digital audio data between devices, featuring separate lines for word clock, bit clock, and data, ensuring synchronized audio streams. SPI (Serial Peripheral Interface) is a general-purpose synchronous serial communication protocol used for short-distance data transfer with a master-slave architecture, typically involving MOSI, MISO, SCLK, and SS lines. Your choice between I2S and SPI depends on whether precise audio data transmission (I2S) or versatile, high-speed data exchange with various peripherals (SPI) is required.
Data Transmission Methods
I2S (Inter-IC Sound) transmits audio data using a dedicated serial bus with separate lines for serial data, word select, and clock signals, ensuring synchronized and continuous audio streams ideal for digital audio interfaces. SPI (Serial Peripheral Interface) uses a master-slave architecture with separate clock, data input, and data output lines, primarily designed for general-purpose communication requiring flexible data packet sizes. Your choice between I2S and SPI should consider the specific data transmission method and application, as I2S excels in audio streaming while SPI is more versatile for varied data communication tasks.
Audio Applications: I2S vs SPI
I2S (Inter-IC Sound) is specifically designed for high-quality audio data transmission, offering precise synchronization and separate clock lines to ensure minimal jitter and accurate timing, making it ideal for digital audio applications such as DACs and ADCs. SPI (Serial Peripheral Interface) is a general-purpose communication protocol that can transmit audio data but lacks the dedicated timing features of I2S, which may result in less optimal audio synchronization and potential data integrity issues. For Your audio applications requiring high-fidelity sound and reliable data stream synchronization, I2S is typically the preferred choice over SPI.
Speed and Performance Comparison
I2S offers higher data transfer rates tailored for audio streaming, enabling low-latency, synchronized communication ideal for high-fidelity digital audio applications. SPI, while versatile with configurable clock speeds up to several MHz, generally provides faster raw throughput for general-purpose data transmission but lacks specialized synchronization features found in I2S. Your choice hinges on whether you prioritize precise audio timing and performance (I2S) or flexible, high-speed data exchange (SPI).
Hardware Requirements and Pin Configuration
I2S requires at least three dedicated pins: Serial Data (SD), Word Select (WS), and Serial Clock (SCK), specifically designed for audio data transmission, while SPI typically uses four pins: Master Out Slave In (MOSI), Master In Slave Out (MISO), Serial Clock (SCLK), and Chip Select (CS) for general-purpose data communication. I2S hardware demands precise synchronization between clocks for audio bit timing, contrasting with SPI's flexible clock polarity and phase configurations that accommodate a variety of data protocols. Pin configurations for I2S are standardized for streaming audio interfaces, whereas SPI pins can be multiplexed for various functions, influencing overall hardware complexity and PCB layout design.
Pros and Cons of I2S and SPI
I2S excels in audio data transmission with its synchronous, dedicated clock lines ensuring high-fidelity sound and minimal jitter, but it is limited to audio applications and requires more pins. SPI offers flexible, high-speed full-duplex communication suitable for a wide range of peripherals, with simple hardware implementation, but it can suffer from signal integrity issues over long distances and lacks built-in error checking. While I2S is optimized for continuous, real-time audio streaming, SPI's versatility supports diverse data exchanges, making their choice dependent on specific project requirements such as data type and communication complexity.
Choosing the Right Protocol for Your Project
I2S excels in audio data transmission with dedicated synchronization signals and high-fidelity stereo support, making it ideal for sound processing and playback applications. SPI offers greater versatility for general-purpose communication with customizable clock speeds and multiple device support, suitable for sensors, memory modules, and display interfaces. Selecting the right protocol depends on the project's data types, speed requirements, and peripheral compatibility, where I2S is preferred for precise audio streams and SPI for complex device control.

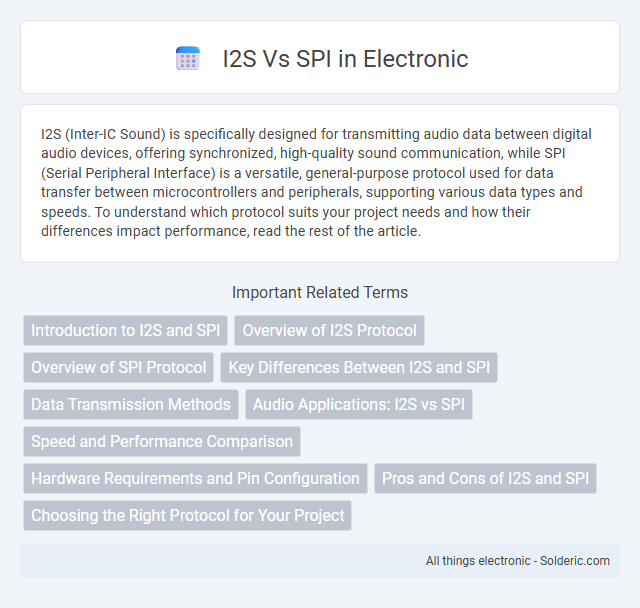

I2S vs SPI Infographic
