solderic.com Direct digital modulators offer precise control, improved signal quality, and efficient bandwidth utilization compared to analog modulators, which rely on continuous signals and are more prone to noise and distortion. Explore the rest of the article to understand which modulation technique best suits Your communication needs.
Comparison Table
| Feature | Direct Digital Modulator | Analog Modulator |
|---|---|---|
| Modulation Type | Digital (e.g., QAM, PSK) | Analog (e.g., AM, FM) |
| Signal Processing | Digital signal processing (DSP) | Continuous wave processing |
| Frequency Accuracy | High, controlled by digital clock | Lower, affected by analog components |
| Noise Immunity | Better noise resilience due to digital encoding | More susceptible to noise and distortion |
| Complexity | Higher complexity; requires ADC/DAC and DSP | Simpler circuitry |
| Power Consumption | Generally higher due to digital processing | Lower power requirements |
| Flexibility | High; supports multiple modulation schemes | Limited to specific analog modulation types |
| Cost | Higher initial cost; cost-effective in large scale | Lower cost, suitable for simple applications |
Introduction to Modulation Techniques
Direct digital modulators convert digital signals directly into modulated waveforms, offering higher precision and reduced noise compared to analog modulators that manipulate continuous analog signals for transmission. Digital modulation techniques such as QAM, PSK, and FSK provide better spectral efficiency and error resilience, making them suitable for modern communication systems. Analog modulation methods like AM, FM, and PM, while simpler, are more susceptible to signal degradation and noise interference under varying channel conditions.
What is a Direct Digital Modulator?
A Direct Digital Modulator converts digital signals directly into modulated waveforms without intermediate frequency stages, enabling precise control over signal characteristics such as phase, amplitude, and frequency. Unlike analog modulators that rely on continuous signal variations, direct digital modulators use digital signal processing techniques to generate highly accurate and stable modulation, improving spectral efficiency and reducing distortion. Your communication system benefits from enhanced flexibility and integration, making direct digital modulators ideal for modern software-defined radios and advanced wireless applications.
Understanding Analog Modulators
Analog modulators manipulate continuous signals by varying amplitude, frequency, or phase to encode information, relying on circuit components like mixers and oscillators for modulation. Unlike direct digital modulators that digitally generate modulated waveforms, analog modulators operate entirely in the analog domain, often resulting in higher noise susceptibility and less precision. Understanding analog modulators involves analyzing their inherent linearity, bandwidth constraints, and distortion effects critical for applications in AM, FM, and PM transmission systems.
Key Differences Between Digital and Analog Modulation
Digital modulation encodes information into discrete digital signals using techniques such as Phase Shift Keying (PSK), Frequency Shift Keying (FSK), and Quadrature Amplitude Modulation (QAM), enabling higher data rates, improved noise resilience, and efficient bandwidth usage. Analog modulation varies continuous signal parameters, including amplitude (AM), frequency (FM), or phase (PM), providing simpler implementation but lower noise immunity and less efficient spectrum utilization. Key differences include digital modulation's robustness to interference, greater spectral efficiency, and capability for error correction, contrasting with analog modulation's susceptibility to noise and simpler transmitter/receiver designs.
Performance Comparison: Direct Digital vs Analog Modulation
Direct digital modulators offer higher precision and stability due to their digital signal processing capabilities, resulting in reduced noise and improved signal integrity compared to analog modulators. Analog modulators typically suffer from higher distortion and susceptibility to environmental variations, which can degrade overall performance. The digital approach enables enhanced spectral efficiency, faster data rates, and more flexible modulation schemes, making it superior for modern high-performance communication systems.
Advantages of Direct Digital Modulation
Direct digital modulators offer superior precision and flexibility compared to analog modulators by enabling exact control of modulation parameters through digital signal processing, resulting in improved signal quality and reduced distortion. They support advanced modulation schemes like QAM and PSK, facilitating higher data rates and enhanced spectral efficiency crucial for modern communication systems. Digital modulation also enables easier integration with software-defined radios and simplifies system calibration and adaptation to varying channel conditions.
Limitations of Analog Modulators
Analog modulators face limitations such as susceptibility to noise and distortion, which degrade signal quality and reduce overall communication system performance. Their bandwidth efficiency is lower compared to direct digital modulators, leading to less effective utilization of spectrum resources. You will find direct digital modulators offer improved precision and stability, overcoming many constraints inherent in analog modulation techniques.
Applications of Digital versus Analog Modulation
Digital modulation is widely used in modern telecommunications, including wireless networks, satellite communication, and digital broadcasting, due to its robustness against noise and ability to efficiently transmit data. Analog modulation remains prevalent in traditional radio and television broadcasting, as well as in audio transmission systems where simplicity and continuous signal representation are crucial. Your choice between direct digital modulator and analog modulator depends on the application's data requirements, signal quality needs, and transmission environment.
Future Trends in Modulation Technology
Direct digital modulators offer enhanced precision and flexibility, enabling seamless integration with software-defined radio (SDR) platforms and supporting advanced modulation schemes like QAM and OFDM for higher data rates. Analog modulators, while simpler and lower in cost, face limitations in bandwidth efficiency and adaptability, making them less suitable for evolving 5G and beyond communication standards. Future trends emphasize digital modulation's role in dynamic spectrum management, cognitive radio, and AI-driven signal processing, driving the shift from traditional analog methods to fully digital communication systems.
Choosing the Right Modulation Method for Your System
Choosing the right modulation method for your system involves evaluating factors like signal fidelity, bandwidth efficiency, and implementation complexity. Direct digital modulators offer superior precision, easier integration with digital signal processing, and robustness against noise, making them ideal for modern communication systems demanding high data rates. Analog modulators, while simpler and often more cost-effective for basic applications, may suffer from lower spectral efficiency and increased susceptibility to distortion and noise in complex environments.

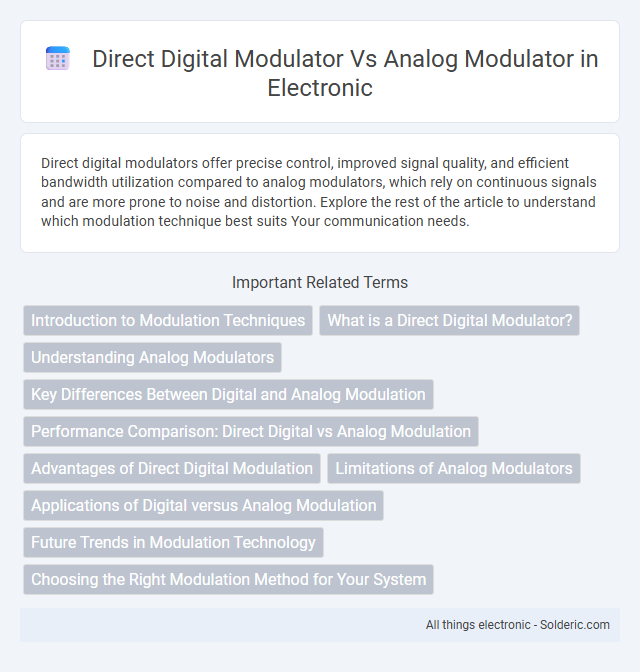

Direct digital modulator vs analog modulator Infographic
