solderic.com MPPT solar charge controllers maximize energy harvest from your solar panels by tracking the optimum power point, boosting efficiency especially in low-light conditions, while PWM controllers operate by simply regulating the voltage to match the battery, making them less efficient but more affordable. Discover which controller suits your solar setup best by reading the rest of the article.
Comparison Table
| Feature | MPPT Solar Charge Controller | PWM Solar Charge Controller |
|---|---|---|
| Technology | Maximum Power Point Tracking (MPPT) optimizes voltage and current | Pulse Width Modulation (PWM) regulates voltage by switching |
| Efficiency | Higher efficiency (up to 95-99%) | Lower efficiency (75-85%) |
| Cost | Higher initial cost | Lower cost |
| Best For | Large solar systems, cold or cloudy conditions, variable voltage panels | Small to medium systems, stable sunlight and voltage panels |
| Voltage Compatibility | Supports higher PV input voltage than battery voltage | PV input voltage should match battery voltage |
| Energy Harvest | Extracts maximum power from solar panels | Limited to battery voltage levels |
| Complexity | More complex electronics | Simpler design |
| Heat Dissipation | Generally better thermal management | Can generate more heat due to switching losses |
Introduction to Solar Charge Controllers
Solar charge controllers regulate the voltage and current from solar panels to batteries, ensuring efficient charging and preventing overcharging. MPPT (Maximum Power Point Tracking) controllers optimize energy harvest by adjusting input to continuously match the panel's maximum power point, increasing efficiency by up to 30% compared to PWM (Pulse Width Modulation) controllers. PWM controllers work by rapidly switching the connection between solar panels and batteries, maintaining a steady voltage but with lower overall energy conversion efficiency, making MPPT ideal for larger or more complex solar systems.
What is PWM Solar Charge Controller?
PWM (Pulse Width Modulation) Solar Charge Controller regulates battery charging by rapidly switching the solar panel's connection on and off to maintain optimal voltage. It minimizes energy loss by reducing the voltage from the solar panel to the battery, ensuring safe and efficient charging, primarily suited for smaller solar systems with stable voltage panels. PWM controllers are cost-effective, simpler, and ideal for lead-acid batteries but may be less efficient compared to MPPT controllers in varying sunlight conditions.
What is MPPT Solar Charge Controller?
MPPT Solar Charge Controller maximizes energy harvest by tracking the solar panel's Maximum Power Point to convert excess voltage into additional current, improving charging efficiency up to 30% compared to PWM controllers. This technology dynamically adjusts to changing sunlight conditions, optimizing power transfer from solar panels to batteries. Your solar system benefits from faster battery charging and better performance, especially in low-light, cloudy, or cold weather environments.
Key Differences Between MPPT and PWM
MPPT (Maximum Power Point Tracking) solar charge controllers optimize power output by adjusting the electrical operating point of solar panels, achieving up to 30% greater efficiency compared to PWM (Pulse Width Modulation) controllers which simply regulate voltage through on/off switching. MPPT controllers are ideal for higher voltage solar arrays and colder climates, as they can convert excess voltage into additional current, whereas PWM controllers work best with lower voltage systems and direct panel-to-battery connections. The cost-effectiveness of PWM units suits smaller setups, while MPPT technology justifies higher investment for larger, more complex solar installations.
Efficiency Comparison: MPPT vs PWM
MPPT solar charge controllers are significantly more efficient than PWM controllers, often achieving efficiency rates between 95% to 99% by optimizing the power output from solar panels under varying conditions. PWM controllers typically deliver efficiency levels around 70% to 80% due to their direct voltage regulation method, which limits power extraction when panel voltage exceeds battery voltage. The higher conversion efficiency of MPPT controllers translates into greater energy harvest, especially in cold weather or partial shading.
Cost Analysis: MPPT vs PWM
MPPT solar charge controllers typically have a higher upfront cost compared to PWM controllers due to their advanced technology and greater efficiency in converting solar energy. While PWM controllers are more budget-friendly and suitable for smaller systems, MPPT controllers can provide better long-term savings by maximizing power output, especially in larger or variable solar arrays. Your investment in an MPPT controller may result in faster payback despite the initial expense because of improved energy harvest and reduced energy loss.
Suitability for Different Solar Panel Systems
MPPT solar charge controllers are ideal for larger solar panel systems and those with higher voltage arrays, maximizing energy harvest by converting excess voltage into usable current. PWM controllers suit smaller, simpler setups or systems with panels closely matched to battery voltage, offering cost-effective charging without complex electronics. Your choice depends on system size, voltage requirements, and efficiency needs to optimize solar power usage.
Pros and Cons of MPPT Charge Controllers
MPPT charge controllers maximize solar panel efficiency by tracking the panel's maximum power point, resulting in up to 30% higher energy harvest compared to PWM controllers, especially in colder temperatures or partial shading conditions. They offer advanced technology with higher initial costs and more complex installation requirements but provide significant long-term savings through improved battery charging and extended battery life. However, MPPT units may be less cost-effective for small solar systems with low voltage panels where the efficiency gain does not justify the higher price.
Pros and Cons of PWM Charge Controllers
PWM charge controllers offer a cost-effective and simple solution for regulating battery voltage and preventing overcharging, making them ideal for small solar systems with lower power demands. Their main limitations include lower efficiency in energy transfer compared to MPPT controllers, especially in systems with higher voltage solar panels or varying weather conditions. If your setup involves basic energy management and budget constraints, a PWM controller can effectively maintain battery health but may not maximize solar energy harvest as efficiently as an MPPT controller.
How to Choose the Right Solar Charge Controller
Choosing the right solar charge controller depends on factors such as system size, battery type, and budget. MPPT controllers offer higher efficiency by converting excess voltage into additional current, making them ideal for larger systems or environments with variable sunlight. PWM controllers are more cost-effective and suitable for smaller systems or where budget constraints exist, but they may result in lower energy harvest compared to MPPT.

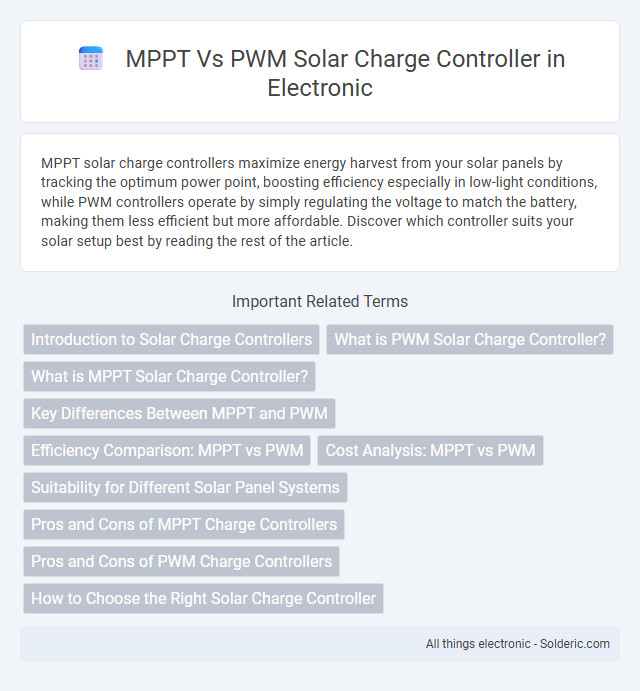

MPPT vs PWM Solar Charge Controller Infographic
