solderic.com FIR filters provide stability and linear phase response, making them ideal for applications requiring precise phase control, while IIR filters offer computational efficiency with recursive structures that emulate analog filter characteristics. Understanding the differences between FIR and IIR signal processing helps you choose the right filter type for your specific digital signal processing needs; read on to explore their detailed advantages and practical applications.
Comparison Table
| Feature | FIR (Finite Impulse Response) | IIR (Infinite Impulse Response) |
|---|---|---|
| Impulse Response | Finite duration, settles to zero | Infinite duration, theoretically never settles |
| Stability | Always stable | May be unstable if poles lie outside unit circle |
| Phase Response | Linear phase possible | Non-linear phase |
| Computational Complexity | Higher for sharp filters | Lower, efficient for steep filters |
| Memory Requirements | Requires more memory (longer filter length) | Requires less memory (shorter filter length) |
| Design Techniques | Windowing, Parks-McClellan algorithm | Butterworth, Chebyshev, Elliptic filter design |
| Feedback | No feedback, feedforward only | Uses feedback loops |
| Applications | Linear phase filtering, stable filters needed | Low-latency filtering, real-time systems |
Introduction to FIR and IIR Filters
FIR (Finite Impulse Response) and IIR (Infinite Impulse Response) filters are fundamental components in digital signal processing, distinguished by their impulse response duration and stability characteristics. FIR filters have a finite duration response, ensuring inherent stability and linear phase response, making them ideal for applications requiring precise phase control. IIR filters utilize feedback, providing an infinite duration response, which enables efficient implementations with fewer coefficients but may introduce phase distortion and potential stability concerns.
Fundamental Differences: FIR vs IIR
FIR (Finite Impulse Response) filters have a finite duration response and are inherently stable due to their non-recursive structure, relying solely on current and past input values. IIR (Infinite Impulse Response) filters employ feedback, causing an infinite duration response that can achieve sharper frequency selectivity with fewer coefficients but may risk stability issues. The fundamental difference lies in FIR filters' linear phase response and guaranteed stability versus IIR filters' efficiency and potential phase distortion caused by their recursive nature.
Mathematical Representations of FIR and IIR
FIR (Finite Impulse Response) filters are mathematically represented by a finite sum of weighted past input samples, expressed as y[n] = S (from k=0 to M-1) of b_k * x[n-k], where b_k are filter coefficients and M is the filter order. IIR (Infinite Impulse Response) filters involve both past input and past output samples, characterized by the equation y[n] = S (from k=0 to M) of b_k * x[n-k] - S (from l=1 to N) of a_l * y[n-l], where a_l and b_k represent filter coefficients, and N and M define the filter orders. The key difference lies in FIR's reliance solely on input samples, ensuring stability and linear phase, while IIR incorporates feedback from previous outputs, enabling more compact filter designs but potentially causing stability challenges.
Frequency Response Comparison
FIR filters provide a linear phase response, preserving the waveform shape of signals, which is crucial in applications requiring phase linearity. IIR filters generally have nonlinear phase characteristics but can achieve sharper frequency cutoffs with fewer coefficients, offering computational efficiency. Understanding the frequency response differences helps you select the optimal filter type for your specific signal processing needs.
Stability and Phase Characteristics
FIR (Finite Impulse Response) filters guarantee stability due to their non-recursive structure, ensuring all poles lie at the origin of the z-plane, while IIR (Infinite Impulse Response) filters may become unstable if poles lie outside the unit circle. FIR filters provide linear phase characteristics, preserving the waveform shape of filtered signals, whereas IIR filters typically exhibit nonlinear phase response, causing phase distortion. The linear phase property of FIR filters makes them ideal for applications requiring minimal signal distortion, while IIR filters offer computational efficiency but demand careful design for stability and phase considerations.
Implementation Complexity and Computational Cost
FIR (Finite Impulse Response) filters have a simpler, inherently stable implementation with a fixed number of coefficients, making them computationally predictable but often requiring higher order for sharp frequency responses, which increases processing load. IIR (Infinite Impulse Response) filters achieve similar frequency responses with lower order and fewer coefficients, reducing computational cost and memory usage, but they have more complex implementations due to feedback loops and potential stability issues. Your choice between FIR and IIR affects computational efficiency and resource allocation depending on filter stability needs and hardware constraints.
Design Techniques for FIR and IIR Filters
FIR filters utilize windowing methods and the Parks-McClellan algorithm for designing linear-phase filters with exact magnitude specifications. IIR filter design often relies on analog prototype transformations such as Butterworth, Chebyshev, and elliptic approximations combined with bilinear transform or impulse invariance for digital implementation. Optimal filter performance in IIR designs is achieved through pole-zero placement for stability and desired frequency response, whereas FIR design focuses on linear phase and finite-duration impulse response.
Applications: When to Use FIR or IIR
FIR filters are preferred in applications requiring linear phase response, such as audio processing and data communications, due to their inherent stability and precise control over phase characteristics. IIR filters are ideal for applications demanding efficient computation and sharp frequency selectivity, commonly used in real-time systems like biomedical signal processing and control systems. Choosing between FIR and IIR depends on balancing phase linearity, computational complexity, and system stability requirements.
Advantages and Limitations of FIR and IIR Filters
FIR filters offer inherent stability and linear phase response, making them ideal for applications requiring precise phase control, but they often require higher computational resources due to longer filter lengths. IIR filters achieve similar frequency response characteristics with fewer coefficients, resulting in lower computational complexity and memory usage, but they can suffer from stability issues and nonlinear phase distortion. Balancing filter performance involves choosing FIR filters for phase-sensitive tasks and IIR filters for efficiency in real-time processing scenarios.
Summary and Future Trends in Digital Filter Design
FIR (Finite Impulse Response) filters offer inherent stability and linear phase response, making them ideal for applications requiring precise phase characteristics, while IIR (Infinite Impulse Response) filters provide computational efficiency with a smaller filter order for similar frequency responses. Future trends in digital filter design emphasize adaptive filtering techniques, leveraging machine learning algorithms to optimize filter parameters dynamically for real-time signal processing tasks. Your choice between FIR and IIR will increasingly depend on specific application requirements and advancements in algorithmic implementations.

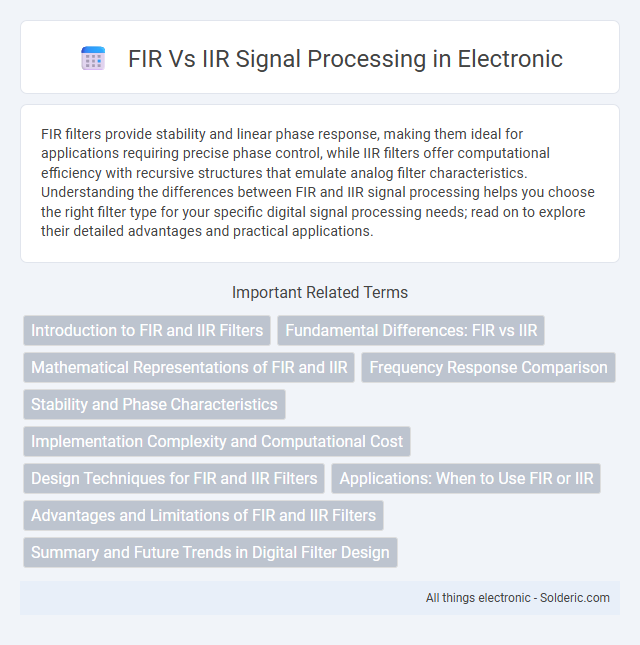

FIR vs IIR signal processing Infographic
